CoilMac-EX Electric Punch and Electric Inserter Series

The CoilMac-EX Electric Punch and EX Plus makes coil binding fast, easy, convenient and professional; it’s the ideal partner for customers that have medium volume workloads. The CoilMac-EX is a more cost effective solution for those customers that don’t have the production requirements needed for an Akiles CoilMac-ECP system, but are looking for a more robust and durable machine than an Akiles CoilMac EPI.

The CoilMac-EX was built on the same platform as the CoilMac-EPI but with a smaller motor to reduce cost. The CoilMac series is available in two versions one with 4:1 – .250 pitch round holes and a second version with 4:1 – .248 oval holes. Perfect for those customers that are looking for a high quality machine with a limited budget and mid volume workloads.

Operational Manual PDF Download

Weight 50 lbs
Dimensions 16 × 16 × 11 in
CoilMac-EX Series

CoilMac-EX (ROUND Holes), CoilMac-EX Plus (OVAL Holes)

Specifications

Up to 1″ (electric) Up to 2″ (manual)

Model:
Pitch: Standard 4:1 (0.250”) Letter 4:1 (0.248”)

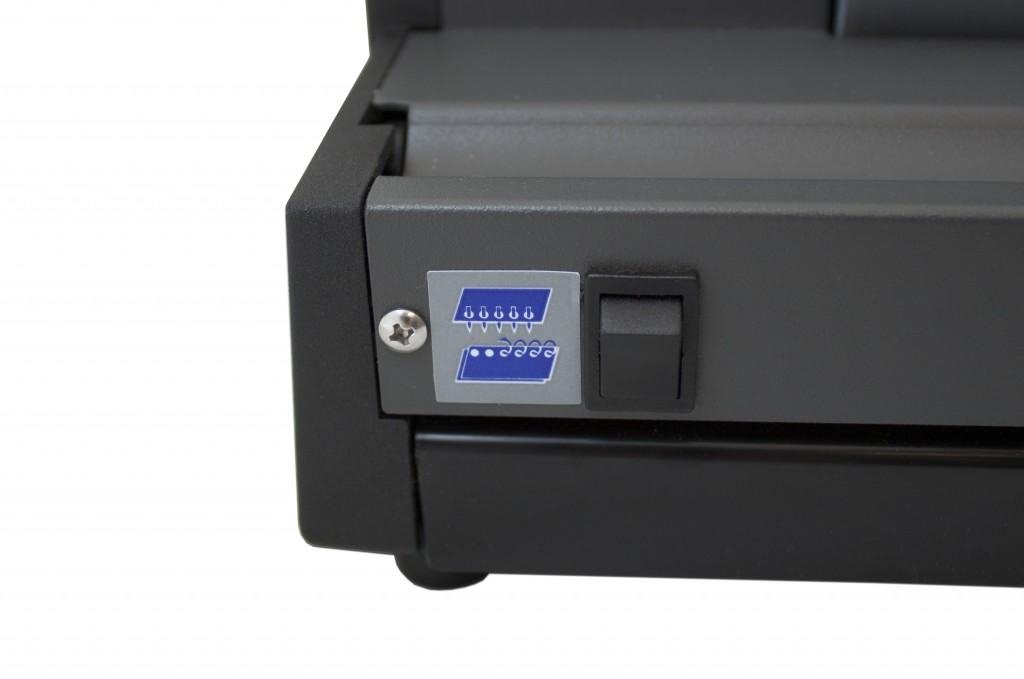

Operation: Punching – Electric
Inserting – Electric
Single Punch Capacity: Up to 25 sheets for 20 lbs paper.
Up to 2.6mm for hardboard
(28-sheet equivalent thickness)*

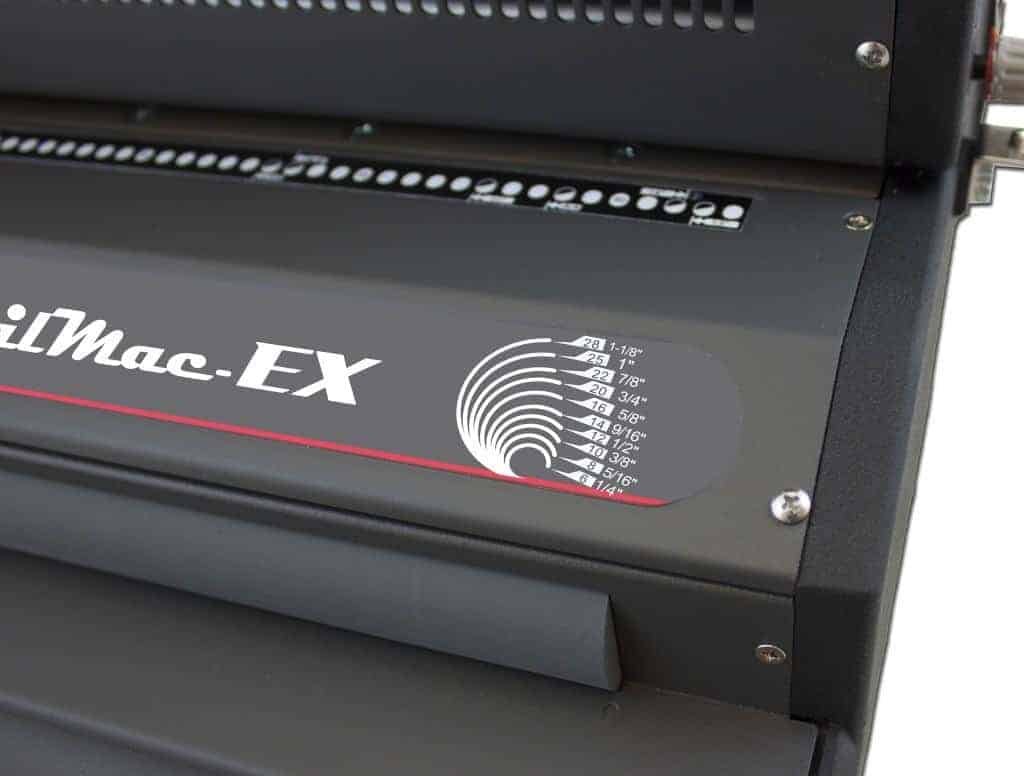

Suggested Binding Capacity: Up to 7/8″ (electric)
Up to 2″ (manual)
Single Punch Length: 13″ (53 holes) 13″ (54 holes)
Hole Size: Round (4mm) Oval (4mm x 5mm)
Disengageable Pins: 5 out of 53 All 54
Weight & Dimensions: 50 lbs
Warranty: 1 Year

Features

CoilMac-EX Version Features:

  • Round Holes – Standard 4mm round holes
  • 5 Disengageable Pins – Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-ECI very simple to use.
  • Standard 4:1 Pitch (.250): Standard pitch for coil binding. Punches 43 holes in a 11″ sheet.

CoilMac-EX Plus Version Features:

  • Oval holes – Special 4 x 5mm oval holes, makes coil insertion much faster as compared to standard round holes.
  • Fully Disengageable Pins – For a completely clean & professional punching of any paper size, all 54 pins can be independently pulled & disengaged.
  • Letter 4:1 pitch (.248) – The .248 coil pitch is specifically designed to give you 44 evenly-centered holes in an 11″ sheet, which provides the most ideal hole to edge-of-sheet margins and easier coil insertion. Hole pattern is 100% compatible with 4:1 pitch coils.

1 review for CoilMac-EX Electric Punch and Electric Inserter Series By Akiles

5 Star

0 %
0 review(s)

4 Star

0 %
0 review(s)

3 Star

0 %
0 review(s)

2 Star

0 %
0 review(s)

1 Star

0 %
0 review(s)

Reviewed by 01 customer(s)

  • Avatar

    J C

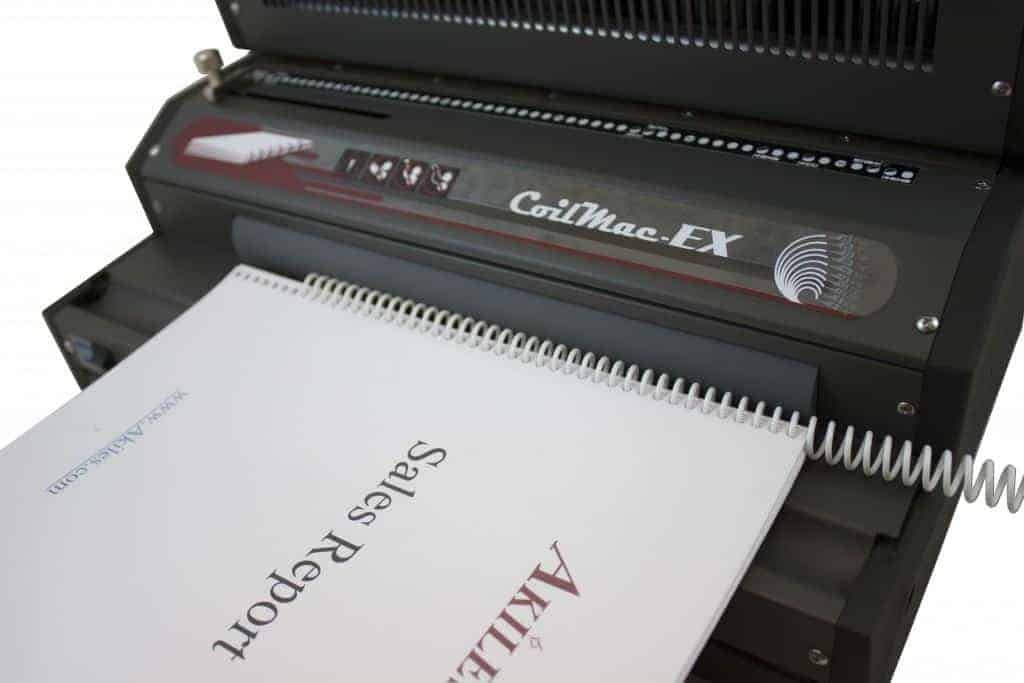

    With its heavy duty punch motor, built-in electric coil inserter and complete system of functions, the Akiles CoilMac-EX makes coil binding fast, easy, convenient and professional.
