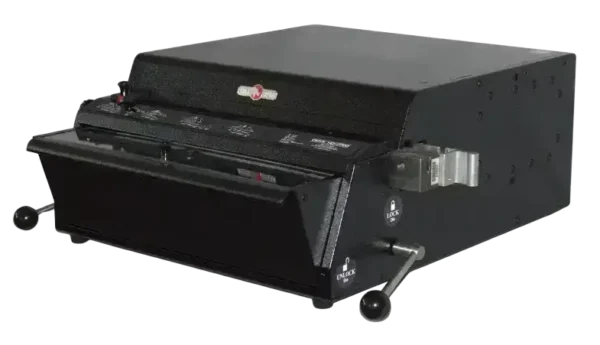

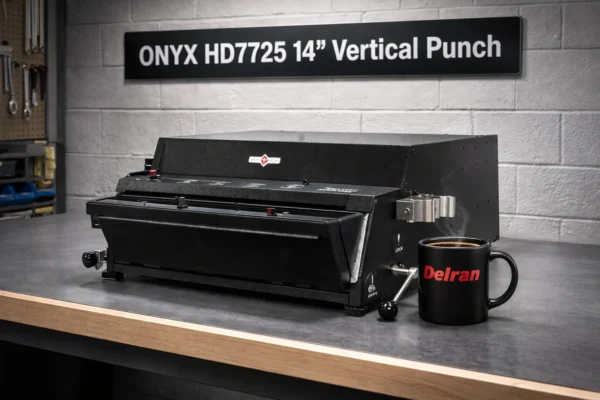

Onyx HD7725 Ultima Punch Industrial System
The Onyx HD7725 Ultima punch is Engineered and manufactured with precision CNC machining in Boise, Idaho, USA, the Onyx HD7725 Ultima delivers powerful, quiet performance for high-production binding environments. Equipped with a ½ HP USA-made DC motor and electromagnetic brake, this industrial punch is built for continuous-duty operation in demanding print and finishing facilities.
The upgraded industrial drive train ensures consistent, uninterrupted punching — even during extended production runs.
📊 Compare all Rhin-O-Tuff Onyx Punch models here.
High-Performance Industrial Power
½ HP USA-made DC motor
USA-made electromagnetic brake
Up to 65 punch cycles per minute
Continuous-duty rated
Industrial-grade drive system
Designed for production floors that demand speed and reliability.
14″ Open-Ended Punching System
14″ horizontal punching slot
Open-ended design
Punch up to 28″ documents in two passes
Ideal for letter, legal, 11″ × 17″
This format balances capacity with production efficiency.
Modular Production Ecosystem
The HD7725 Ultima is designed for scalable growth:
Patented Quick-Change Die System (tool-free swaps)
Disengageable pins for custom hole configurations
Compatible with APES (Auto Paper Ejector & Stacker)
Compatible with PAL-14 (Electric Pick-A-Lift)
Compatible with PAL-M (Manual Pick-A-Lift)
Supports all major binding styles:
Ring Bind 3-5-7-2 Hole
Velo Binding
Plastic Comb
2:1 & 3:1 Metal Wire
Pro Click
Coil (4:1, 5:1, 6mm round/oval)
Custom patterns available.
Punch Capacity (20 lb Bond)
Ring Bind / Velo: up to 55 sheets
Comb: up to 48 sheets
Wire (2:1 / 3:1): up to 40 sheets
Coil: up to 40 sheets
Significantly higher capacity than entry-level systems.
Workflow & Control Features
AccuSet Paper Stop & Scale
Automatic & manual reverse jam control
Extra-large waste tray
Foot pedal + palm switch included
Optional Versa Paper Stop Switch upgrade
Designed to reduce downtime and increase throughput.
Built for Longevity
Precision CNC-machined chassis
All-metal construction
Easy maintenance access

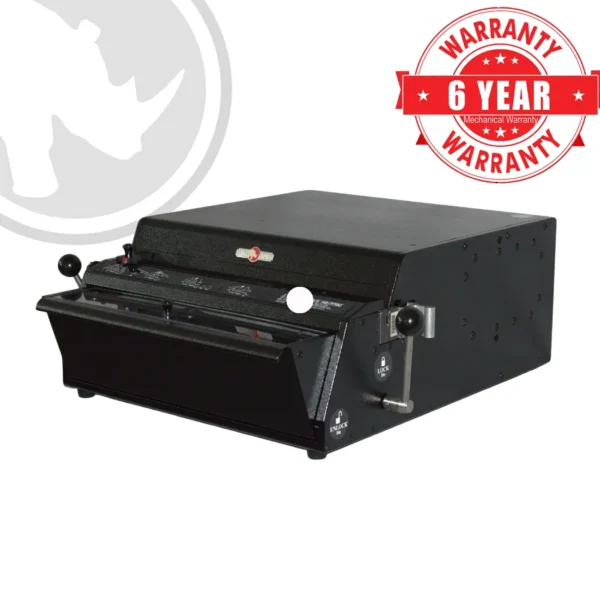

Industry-leading 6-Year Warranty
Made in the USA.
✅ ELECTRICAL & DIMENSIONS
Power Options:
115 VAC, 60 Hz (4A)
230 VAC, 50 Hz (2A)
Machine Weight: 96 lbs
Shipping Weight: 103 lbs
Footprint: 8.5″ H × 21″ W × 22.5″ D
Onyx HD7725 Ultima Punch Manual PDF
Upgrade to a Complete Production System
The Onyx HD7725 Ultima Punch is designed as a scalable modular platform. As your production needs grow, you can integrate advanced automation accessories to dramatically increase throughput and reduce manual handling.
🔹 APES – Auto Paper Ejector & Stacker
Automatically ejects and stacks punched sheets as they exit the die.
Benefits:
Reduces operator fatigue
Increases punching efficiency
Maintains consistent sheet alignment
Ideal for long production runs
Perfect for high-volume environments where continuous output is critical.
🔹 PAL-14 – Electric Pick-A-Lift
Motorized lift system that raises paper stacks to the optimal punching height.
Benefits:
Reduces lifting strain
Improves ergonomics
Increases speed of operation
Designed for continuous-duty production
Ideal for facilities running multiple stacks per hour.
🔹 PAL-M – Manual Pick-A-Lift
Manual lift system offering ergonomic stack positioning without full automation.
Benefits:
Cost-effective productivity upgrade
Improves workflow efficiency
Reduces repetitive strain
Great for growing production environments
FAQ: What supplies are compatible with the HD7725 Rhin-O-Tuff Punch?
The HD7725 works with a wide range of binding supplies, including:
- Plastic spiral coil
- Double loop wire (Wire-O)
- Plastic comb binding elements
- Laminated covers and index tabs
- Double Wire 3:1 Spools
- Double Wire 2:1 Spools
- HD8000 Wire Closer
- Heavy Duty Poly Covers
Using the correct die ensures compatibility with each supply type.
Does the Onyx HD7725 Ultima Punch by Rhin-O-Tuff require maintenance?
Routine maintenance is minimal. To keep your Onyx HD7725 Rhin-O-Tuff Punch operating at peak performance:
- Keep dies clean and free of paper debris
- Lubricate moving parts as recommended
- Inspect pins and dies periodically
Proper maintenance ensures long machine life and consistent punching quality.
