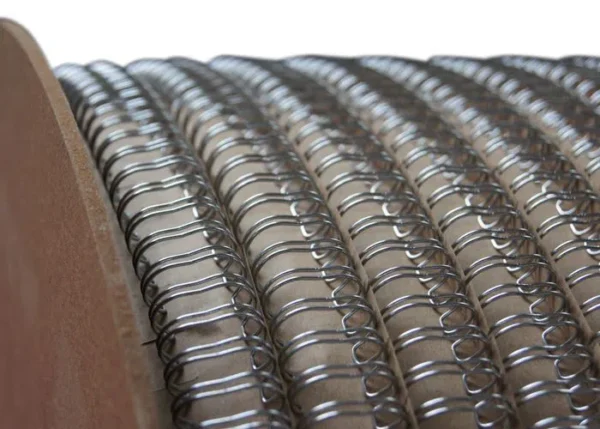

2:1 Double Loop Wire Spools (Twin Loop Binding Wire)
- The Twin Loop Double Wire Spools roll we sell are of the highest quality available in the market today.
- As you might know, using less expensive spool wire can cause all sorts of problems with your automated machine.
- Choosing these wire spools will help reduce problems with stretching that can occur with cheaper import wires.
- We use and test the Double Wire Twin Loop spools in our own shop to insure the highest quality.
- The Twin loop Double wire binding spools roll are available in 8 colors.
Why Choose 2:1 Pitch Wire?
The 2:1 pitch double loop wire is ideal for thicker book projects, accommodating larger sheet counts than 3:1 pitch wire.
Books bound with 2:1 twin loop wire:
✔ Open a full 360°
✔ Lay completely flat
✔ Provide a secure, tamper-resistant bind
✔ Maintain a polished, professional look
Sheet Capacity & Color Options
Our 2:1 double loop wire spools can accommodate high sheet counts (up to approximately 220 sheets of 20 lb paper depending on diameter selection).
Available in 9 color options to match branding, covers, and presentation needs.
9 Color Options Available
Choose from nine different colors to complement your cover design, branding, and logo for a polished finished product.
Looking for 2:1 pitch Spools of Twin Loop Double wire.
11″ wire 3:1 cut to 32 loops
11″ wire 2:1 cut to 21 loops
Consider our Tornado super punch for automated punching
Choosing the Right Pitch: 2:1 vs. 3:1 Spools
When selecting double loop wire spools, the “pitch” refers to the number of holes per inch. Choosing the correct pitch is determined by the thickness of your document and the punching pattern of your binding machine.
3:1 Pitch (3 Holes Per Inch)
This is the most common pitch for professional office documents, presentations, and smaller booklets.
Best For: Thin to medium-thickness documents.
Capacity: Typically holds between 30 and 120 sheets of standard 20 lb paper.
Look: The holes are closer together, providing a refined, elegant appearance for smaller projects.
Compatibility: Must be used with a 3:1 pitch punching machine.
2:1 Pitch (2 Holes Per Inch)
This pitch is designed for versatility and is the industry standard for high-capacity binding.
Best For: Medium to very thick books, manuals, and large catalogs.
Capacity: Accommodates a wider range, from 30 up to 220 sheets of standard 20 lb paper.
Look: The loops are spaced further apart, which provides the structural integrity needed to support heavier, thicker documents.
Compatibility: Must be used with a 2:1 pitch punching machine.
Quick Comparison Table
| Feature | 3:1 Pitch Spools | 2:1 Pitch Spools |
| Holes per Inch | 3 Holes | 2 Holes |
| Sheet Capacity | 30 – 120 Sheets | 30 – 220 Sheets |
| Diameter Range | 1/4″ to 9/16″ | 1/4″ to 1-1/4″ |
| Primary Use | Reports, Books, & Presentations |
Technical Guide: Selecting the Correct Wire Diameter
Choosing the right size for your 2:1 double loop wire spools is just as important as choosing the pitch. To ensure a professional finish where pages turn freely, you must account for the total thickness of your document, including the front and back covers.
How to Measure for 2:1 Double Loop Wire Spools
Measure the Thickness: Lay your document (including covers) flat on a table and measure the total height.
Add the “Wiggle Room”: To allow pages to turn 360°, add 1/8″ (approx. 3mm) to your measurement.
Match the Spool Size: Choose the spool diameter that most closely matches your final total.
