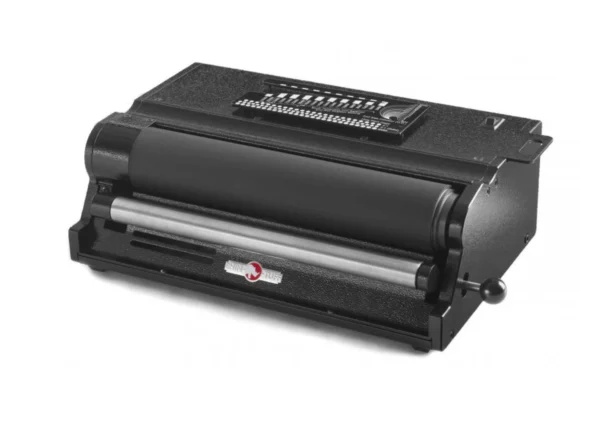

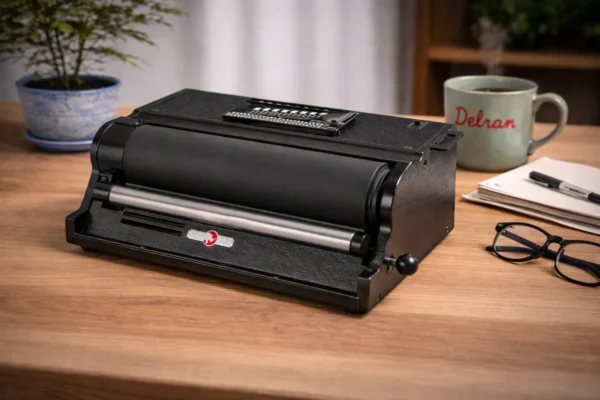

HD4170 Electric Coil Inserter Rhin-O-Roll – Heavy Duty Coil Binding Machine

The HD4170 Electric Coil Inserter Rhin-O-Roll is a premium electric coil inserting machine engineered for speed, precision, and durability in high-volume binding environments. Designed to work seamlessly with spiral coil binding machines, this professional-grade unit delivers smooth, consistent coil insertion across a wide range of coil sizes and pitches.

Built for print shops, binderies, and production facilities, the HD4170 Rhin-O-Roll Coil Inserter enhances workflow efficiency while ensuring a clean, professional finish on every bound document.

High-Speed Coil Insertion with Dual-Powered Rollers

At the core of the HD4170 Electric Coil Inserter are its 12-inch dual-powered rubber rollers, designed to provide smooth and controlled coil insertion. These rollers ensure consistent feeding without hesitation, making it easier to insert coils quickly and accurately.

The advanced roller system allows operators to:

• Increase production speed
• Maintain consistent alignment
• Reduce operator fatigue
• Achieve professional-quality results

This makes it an essential tool for any high-volume coil binding operation.

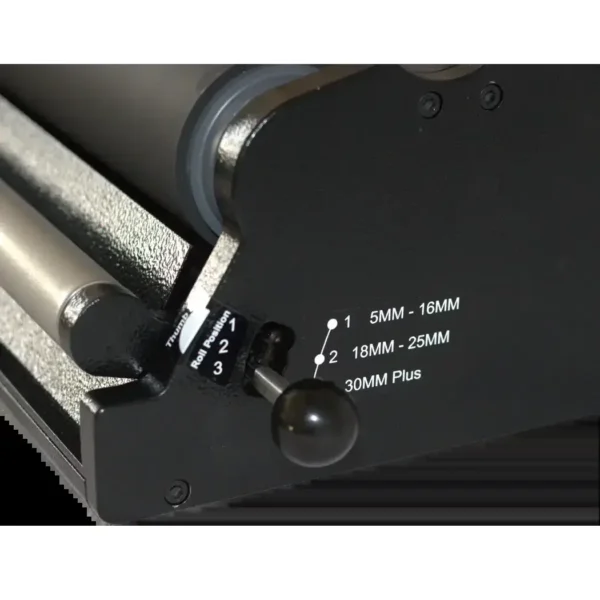

Adjustable Lower Roller for Precision Control

The adjustable lower roller provides added flexibility when working with different coil diameters and document thicknesses. This feature allows users to fine-tune the insertion process for maximum control and accuracy.

Whether you’re binding small booklets or thicker manuals, the HD4170 Rhin-O-Roll adapts easily to your workflow.

Superior Rubber Roller Formula for Reliable Performance

The HD4170 Electric Coil Inserter Rhin-O-Roll features a specially engineered rubber formula that ensures consistent grip during operation. This prevents slippage and allows coils to feed smoothly through the document.

The result is:

• Faster insertion times
• Reduced errors
• Improved binding consistency

This level of reliability is critical for maintaining efficiency in production environments.

Built-In Document Thickness Gauge

An integrated document thickness gauge allows operators to quickly determine the correct coil size for each project. This helps reduce setup time and ensures that every document is bound with the proper coil diameter.

By eliminating guesswork, this feature improves both productivity and final presentation quality.

Flexible Setup for Any Binding Environment

The HD4170 ONYX Rhin-O-Roll Coil Inserter can be used as a stand-alone unit or mounted directly to compatible Rhin-O-Tuff vertical punching machines. This flexibility allows businesses to configure their binding workflow based on space and production needs.

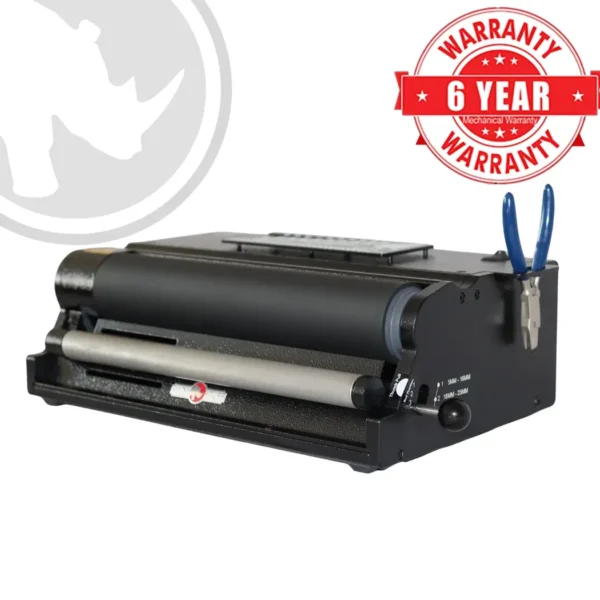

It also includes crimping pliers with a built-in holder, making it easy to finish coil ends quickly and efficiently.

Key Features

✔ 12” dual-powered rollers for smooth, consistent insertion
✔ Adjustable lower roller for precision control
✔ Advanced rubber formula prevents slippage
✔ Integrated document thickness gauge
✔ Works with all coil pitches and diameters
✔ Stand-alone or compatible with Rhin-O-Tuff punch systems
✔ Includes crimper pliers with holder
✔ Ideal for high-volume coil binding environments

Technical Specifications

Frequently Asked Questions (FAQ)

What is the HD4170 Rhin-O-Roll used for?

The HD4170 Electric Coil Inserter is used to quickly and efficiently insert spiral binding coils into punched documents.

Can it handle large coil sizes?

Yes, it supports spiral coils up to 50 mm, making it suitable for both small and large binding projects.

Does it work with all coil pitches?

Yes, it is compatible with all coil pitches and diameters, offering maximum flexibility.

Can it be used with punching machines?

Yes, it can operate as a stand-alone unit or be mounted to compatible Rhin-O-Tuff punching systems.

Compatible Supplies: Up to 50mm Spiral Coils Compatible Equipment: Spiral Coil Binding Machines

• Compatible Equipment: Spiral Coil Binding Machines
