Description

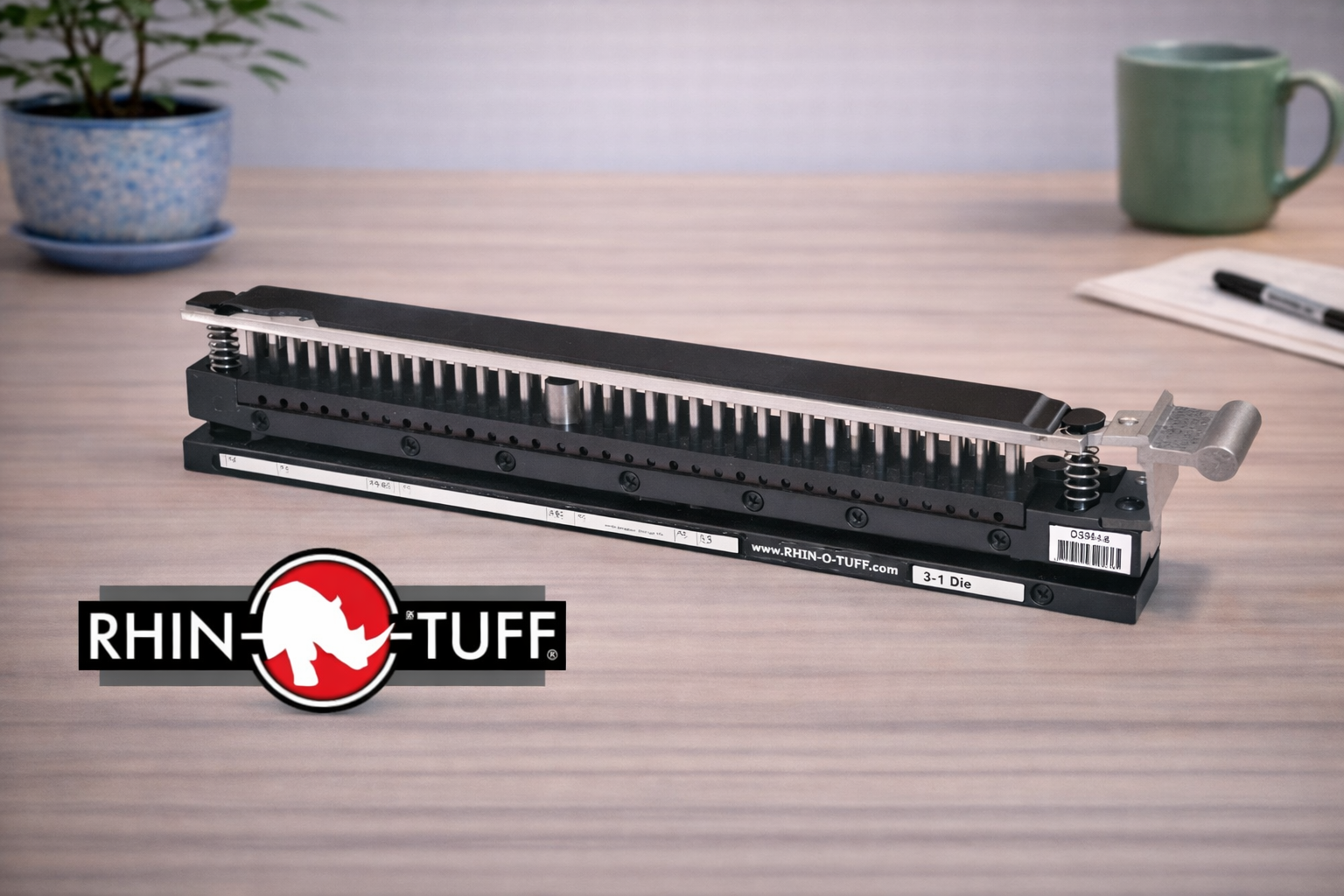

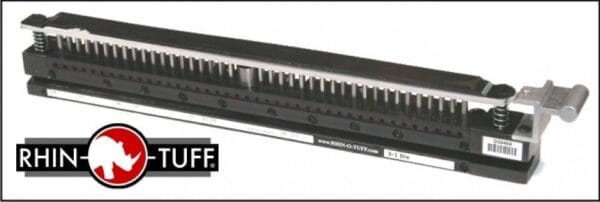

Rhin-O-Tuff 4012 Punch Die with EZ Interchangeable Tooling
The Rhin-O-Tuff 4012 Punch Die is precision-engineered to maximize the performance of your OD 4012 binding system. Built for durability and accuracy, this patented die tool delivers consistent punching results across a wide range of professional document finishing applications.
The OD 4012 utilizes the proven Rhin-O-Tuff EZ Change Die System, allowing fast and efficient die swaps to reduce downtime. Each die features the Rhin-O-Tuff EZ swing-away die pin retainer, enabling operators to disengage individual punching pins for custom punch patterns and specialty binding configurations.
The interchangeable Rhin-O-Tuff 4012 Punch Die supports multiple binding styles, including:
Twin loop wire (Wire-O)
Plastic comb binding
Spiral coil binding
Velo bind
Additional Rhin-O-Tuff die punch patterns
Whether producing reports, manuals, calendars, or presentation materials, the Rhin-O-Tuff 4012 Punch Die ensures clean, professional hole patterns with every cycle.
Service, Parts & Support
We provide professional service and repair for Rhin-O-Tuff 4012 punch equipment to keep your binding operation running efficiently. Genuine replacement parts ship directly to you, helping minimize downtime and maintain peak performance.

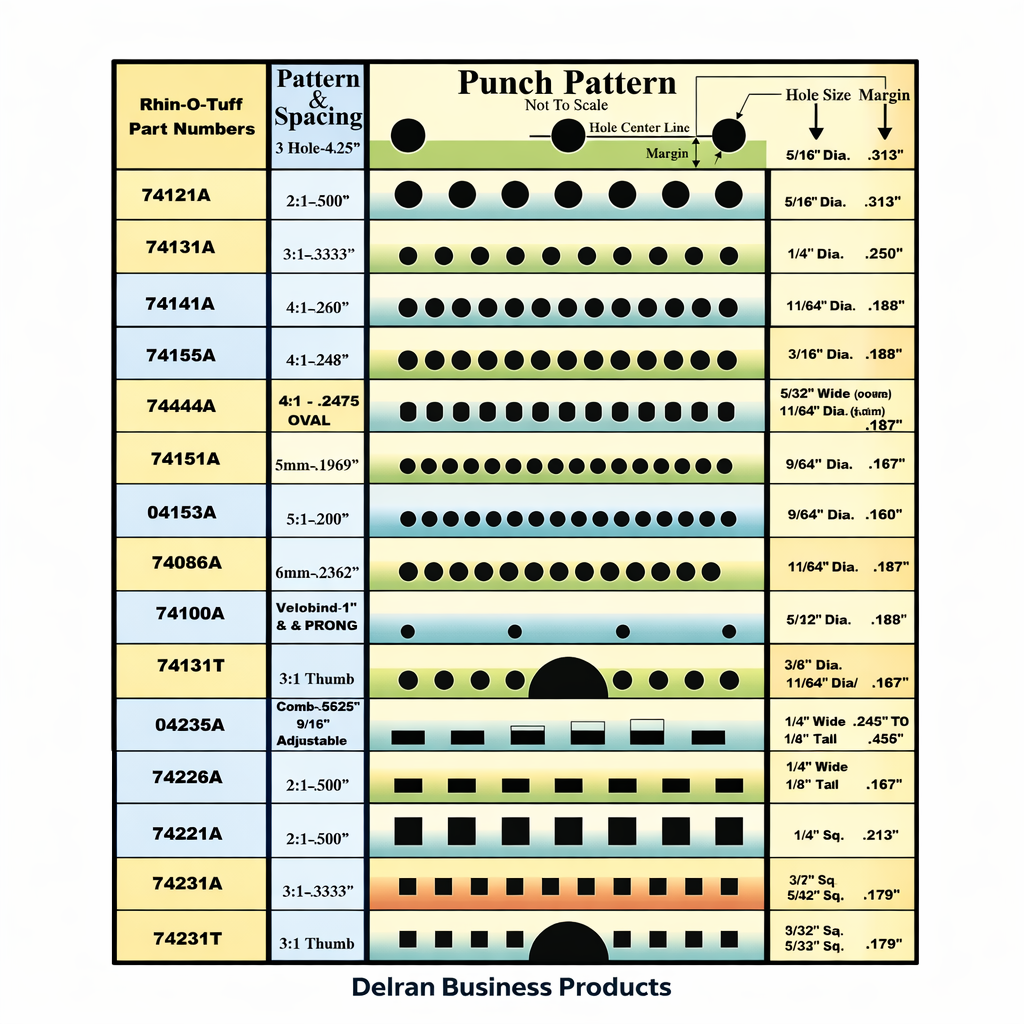

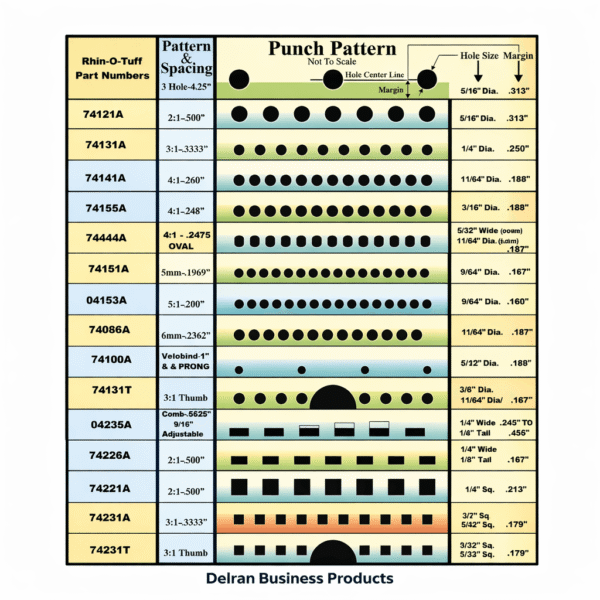

Browse our complete selection of Rhin-O-Tuff die punch patterns and EZ interchangeable tooling for all compatible binding systems.
Compatible Equipment
Designed for use with:
Rhin-O-Tuff OD 4012
Explore our full line of Rhin-O-Tuff binding machines and paper punch equipment to ensure compatibility with your system.
🧩 Rhin-O-Tuff Die Series Comparison
| Die Series | Actual Weight | Shipping Weight | Max Punch Length |
|---|---|---|---|
| Standard 14″ Dies (HD7000 / HD7700 Series) | 10 – 15 lbs | 12 – 15 lbs | 14″ (Open-Ended) |
| Wide 24″ Dies (HD7500H Series) | 17 – 18 lbs | 20 lbs | 24″ (Open-Ended) |
Standard 14″ Dies
Designed for HD7000 and HD7700 series punches
Ideal for letter, legal, and most standard document sizes
Open-ended throat allows punching longer sheets in two passes
- Shipping 16″ x 6″ x 6″
Wide 24″ Dies
Designed specifically for HD7500H horizontal punch
Built for large-format binding (11×17, A3, calendars, blueprints)
Open-ended design allows punching up to 48″ sheets in two passes
- Shipping : 26″ x 7″ x 7″
