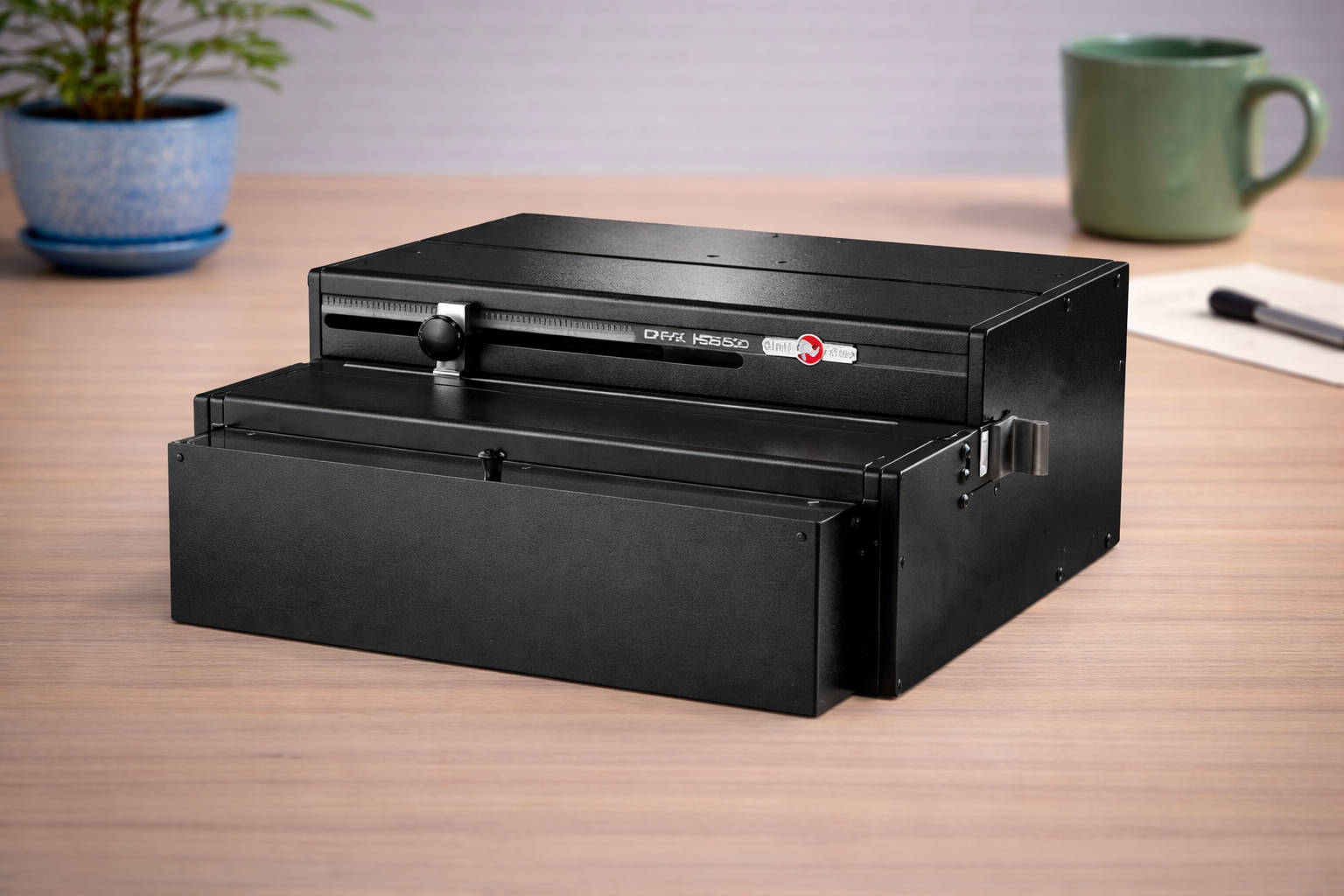

ONYX HD6500 Electric Punch

The HD6500 is a 14 inch (356 mm) open-ended punch that features the 2-bolt EZ Change Slide out die system for changing punch patterns in 60 seconds. The HD6500 was designed with the operator in mind, offering quick, easy set-up including easy pin pulls and pre-set paper stop positions. With a three year limited warranty, this is truly the industry standard. Rated up to 40 sheets or up to 80 pages of 20 pound (80 gsm) bond paper. The number of sheets depends on the paper weight and punch pattern used. Designed for mid to high volume commercial and corporate use.

Weight81 lbs
Dimensions9 × 17 × 20 in
ODPunch Die

Coil 4:1 Oval Holes, Coil 4:1 Round Holes, Double Wire 2:1 Round, Double Wire 2:1 Square, Double Wire 3:1 Round, Double Wire 3:1 Square, Plastic Comb Die, Round Holes 5/16" (3-5-7) 4.25" Spacing

Features

  • Patented Auto Reverse Feature. Our Overload Detection Feature triggers an auto-reversing function to reduce jamming in the punch.
  • Patented “QCDS,” Quick Change Die System.
  • More Than 20 Interchangeable Dies Available.
    Combs
    Wire Loop
    Plastic Coils
    Velo Bind™ GBC
    3 Hole Loose Leaf
  • 25 Cycles Per Minute.
  • Pre-set Paper Stop Guide for easy setup.
  • 14 inch (356 mm) Open Ended Punching, Allows for Wider Applications.
  • All Punch Pins easily disengaged.
  • Easy, “Paper to Pin,” sight alignment, for balanced hole to edge margins on odd-sized applications.
  • Standard Foot Pedal, optional Versa Switch, or Palm Switch.
  •  3 Year Warranty.
  • Smooth, Quiet, Power on Demand Operations.
  • Large EZ View Chip Tray.
  •  All Metal Fabrication.
