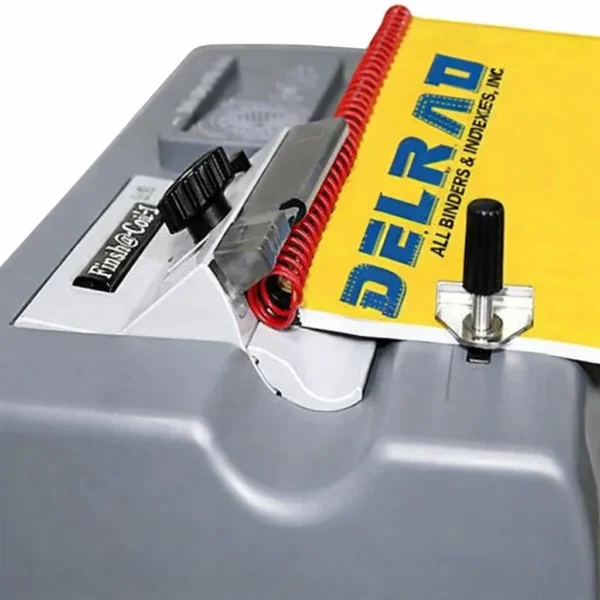

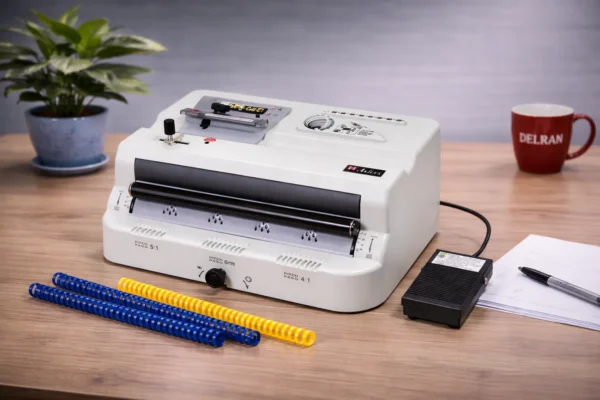

Finish@Coil E1 – Electric Coil Inserter & Electric Crimper
The Finish@Coil E1 electric coil inserter is a high-capacity electric coil finishing system designed to maximize productivity while minimizing operator effort. Combining a full-length electric coil inserter with a built-in electric crimper, this professional-grade machine eliminates manual strain and dramatically speeds up your coil binding workflow.
Designed for busy binding centers and high-volume environments, the Finish@Coil E1 delivers consistent, precise results with minimal effort.
Electric Insertion – Fast & Effortless
The 11-3/8″ full-size EPDM roller provides superior grip and durability, allowing smooth and fast insertion — even with extra-large diameter coils.
Insertion Features:
Heavy-duty motor
Full-length EPDM roller
Adjustable bottom roller mechanism
Handles coils up to 50mm
Foot pedal operated
The adjustable roller system makes it easy to insert coils of different diameters without struggle.
Built-In Electric Coil Crimper
Forget wrist fatigue from manual crimpers.
The integrated electric crimper:
✔ Delivers consistent, perfect crimps
✔ Works on all coil sizes up to 50mm
✔ Operates with a simple foot pedal press
✔ Eliminates the need for separate crimping tools
This dramatically increases finishing speed and operator comfort.
Intelligent Design for Maximum Efficiency
Syncronized Roller/Crimper Adjustment
Ensures proper roller positioning and crimp angle for different coil sizes.
Adjustable Crimper Head
No need to purchase separate crimper heads — easily adjust for various coil diameters.
Automatic Mode Selection Sensor
Set the unit to AUTO mode and the built-in sensor switches between insert and crimp automatically.
Manual Mode Option
Switch between Insert and Crimp using the foot pedal when preferred.

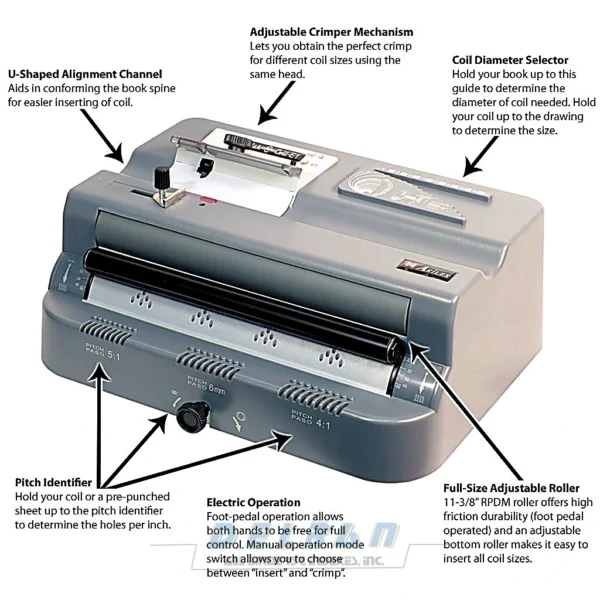

Built-In Productivity Tools
Coil Diameter Scale
Coil Diameter Selector
Pitch Identifier
U-Shaped Alignment Channel
These built-in tools ensure accurate setup and faster insertion on larger diameter books.
Ideal For
Commercial print shops
High-volume binding centers
Schools & universities
Corporate production departments
Operations demanding speed & consistency
If productivity and professional results matter, the Finish@Coil E1 is a must-have finishing solution.
✅ TECHNICAL SPECIFICATIONS
Model: Finish@Coil E1
Inserting: Electric
Crimping: Electric
Motor: Heavy-Duty
Inserting Roller: 11-3/8″ EPDM Roller
Binding Capacity: Up to 50mm
Adjustable Roller: Yes
Machine Dimensions: 14.5″ L × 10.5″ W × 5.75″ H
Carton Dimensions: 17″ L × 14″ W × 10″ H
Weight: 18 lbs
Warranty: 1 Year
